Wi-fi Modules

High-performance Wi-Fi 6 modules engineered for fast, reliable, and power-efficient connectivity
across automotive and industrial environments.

Product Categories

Robust products that support WiFi for high-speed internet access, Bluetooth Classic (BT) for
audio and data transmission, and Bluetooth Low Energy (BLE) for energy-efficient communications.

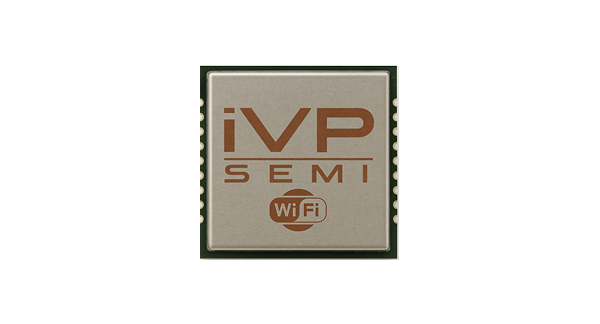

Wifi6 Module

Module offering dual-band support (2.4 GHz and 5 GHz) and full compliance with IEEE 802.11ax and earlier standards (a/b/g/n/ac).

General Features

  • Dimensions: 14mm x 13.2mm x 2.4mm
  • Temperature Range: -35°C to +75°C

Key Features

  • Wi-Fi 6 companion IC with integrated RF with dual-band 2.4 GHz and 5 GHz operation.
  • Supports IEEE 802.11ax and earlier standards (IEEE 802.11 a/b/g/n/ac)
  • Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring
  • Supports WMM, WMM – Power Save, Wi-Fi Agile Multiband, Wi-Fi Direct
  • SPI or QSPI host interface, 3-wire or 4-wire coexistence interface

Applications

Smart Homes & IoT

Healthcare & Wearables

Industrial IoT & Automation

Automotive & Telematics

Retail & Beacons

Electrical Characteristics: Supply voltage range: 2.9 – 4.5 V | IO Level: 1.8V, 3.3V

Request A Quote

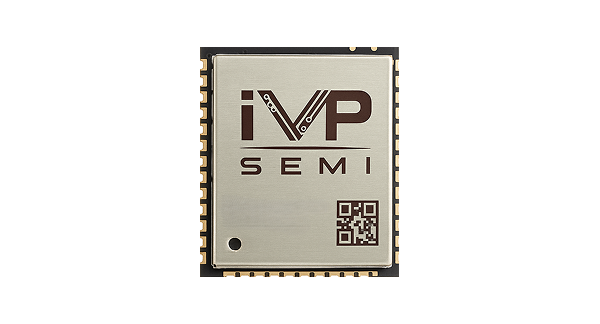

WiFi + BT Module

Wi-Fi 6 + Bluetooth 5.4 + 802.15.4 (Thread and Zigbee-ready) combo chipset for ultra-low-power applications.

General Features

  • Microcontroller: 32-bit RISC-V processor up to 325MHz
  • Memory
    128 KB ROM, 4 KB eFuse, and 1/2/4 KB OTP
    484 KB on-chip SRAM (includes 32 KB I-Cache, 16 KB D-Cache)
    Supports up to 256 Mbit (32 MB) external flash memory

Software Features

  • Standalone (Hostless) Mode
    • No need for an external microcontroller
    • The module handles low-level protocol stacks and completes IoT application logic in standalone mode
  • Hosted Mode
    • Functions solely as a connectivity transceiver
    • Main application logic runs on an external host processor
    • Runs on FreeRTOS
    • Offers an open-source SDK (available on GitHub), and a Visual Studio Code extension for faster development

Wifi

Max Tx Power: +16 dBm
Active Tx Power: TBD
Rx Sensitivity: -67 dBm
Active Rx Power: TBD

Bluetooth

Max Tx Power: +10 dBm
Active Tx Power: TBD
Rx Sensitivity: -90 dBm
Active Rx Power: TBD

Supports SDU, SD/MMC (SDH), SPI, UART, I2C, PWM, GPADC, ACOMP, and GPIO interfaces.
Also supports additional interfaces for camera, display, MJPEG, audio codec, and Ethernet.

Request A Quote
