Cellular Modules

Advanced 4G LTE IoT modules, ensuring robust and stable network access for mission-critical applications
like IoT, vehicle tracking, and remote monitoring.

Product Categories

Ultra-low power, low-cost LTE Cat 1bis module designed for telematic, asset tracking,
and other industrial use cases – supported with bluetooth low-energy applications.

4G LTE Cat 1 Module

Module supporting all the LTE bands for the Indian market and a maximum DL speed of 10Mbps. With integrated Wi-Fi receiver, it also supports indoor location tracking.

General Features

  • Operating Temperature Range: -35°C to +75°C
  • Extended Temperature Range: -40°C to +80°C
  • Dimensions: 32.00 mm x 29.00 mm x 4.0 mm (Weight: Apprx. 8 g)

Key Features

  • 3GPP R14 Cat.1 (single antenna mode) and Cat.1bis compliant
  • Frequency Band: LTE-FDD: B1, B3, B5, B8 | LTE-TDD: B40, B41
  • Data Rate: Maximum DL: 10 Mbps | Maximum UL: 5 Mbps
  • Bandwidth: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz
  • SPI or QSPI host interface, 3-wire or 4-wire coexistence interface

Interfaces

USB 2.0 with High Speed upto 480 Mbps
USIM, eSIM and softSIM Interface
MainUART (AT communication) & Debug
UART SPI and I2C with configurable data rate
Digital Audio through I2S
12-bit 4 channel ADC
General purpose Inputs and Outputs

Software Updates

UDP, TCP, Datagram Transport Layer Security (DTLS), TLS, SSL, MQTT, CoAP, HTTP(S), Remote Network Driver Interface Specification (RNDIS), PPP
Cellular-based Global Terrestrial Positioning
Supports Indoor Location Positioning
Firmware Upgrade Over the Air (FOTA)
Operating System: Free RTOS

Electrical Characteristics: Power Supply: 3.2 V to 3.8 V | IO Level: 1.8 V

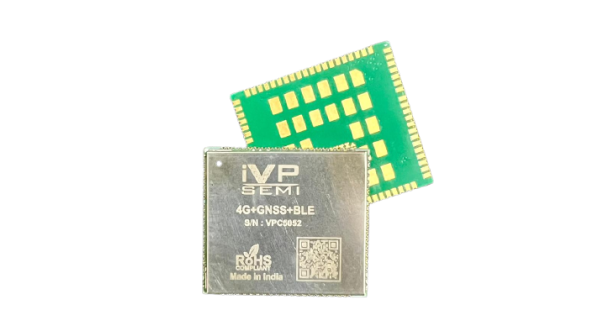

LTE Cat 1 + GNSS + BLE Module

Module with speeds of 10 Mbps DL/5 Mbps UL, Wi-Fi for indoor positioning, GNSS for outdoor accuracy, and BLE 5.3 for low-power connectivity and location services.

General Features

  • Operating Temperature Range: -35°C to +75°C
  • Extended Temperature Range: -40°C to +80°C
  • Dimensions: 32.00 mm x 29.00 mm x 4.0 mm | Weight: Apprx. 11 g

BLE Features

  • Processor: 64 MHz Arm® Cortex-M4
  • Bluetooth capabilities: BLE 5.3, 2 Mbps
  • Memory: 192 KB Flash, 24 KB RAM

Software Features

  • Operating System: FreeRTOS
  • Protocols: UDP, TCP, DTLS, TLS, SSL, MQTT, CoAP, HTTP(s), RNDIS, PPP
  • Positioning: Cellular & Indoor support
  • FOTA (Firmware upgrade over the air)

4G Features

3GPP R14 Cat.1 (single antenna) & Cat.1bis
Bands: LTE-FDD (B1, B3, B5, B8), LTE-TDD (B40, B41)
Data Rate: DL 10 Mbps, UL 5 Mbps
Bandwidth: 1.4–20 MHz
Interfaces: USB 2.0, USIM/eSIM/softSIM, UART (AT & Debug), SPI, I2C, I2S audio, 12-bit 4-ch ADC, GPIO
Memory: 16KB cache, 1MB SRAM, 4MB flash

GNSS Features

Dual-band L1+L5, supports GPS, NavIC, Galileo, Beidou
Accuracy: 2.5m CEP, 0.1 m/s velocity, 0.12 ns timing
TTFF (open sky): Hot 1s, Cold 30s, Reacq <1s
Sensitivity: up to -165 dBm (tracking)
Update Rate: 1–10 Hz
Operational Limits: Alt <80,000 m, Vel <515 m/s
Phoenix engine: low power, autonomous operation

Electrical Characteristics: Power Supply: 3.2 V to 4.2 V | IO Level: 3.3 V | Low power consumption
