Advanced Power Modules designed and made in India, patented for high thermal
performance, cost savings, and scalability across EV, industrial, and renewable energy applications.
Product Categories
Explore our comprehensive range of discrete power semiconductor devices designed for
demanding power conversion applications.

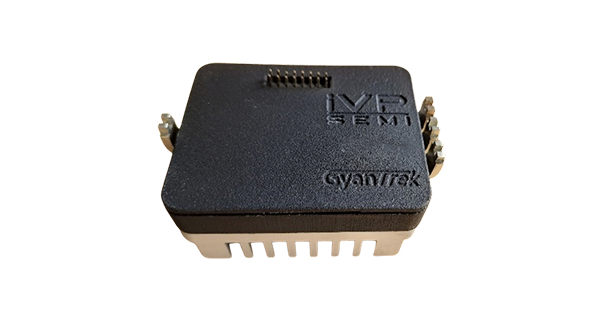

Intelligent Power Modules (IPM)
Integrated gate drivers with monitoring for current, voltage, and temperature
Key Features
- Operating voltage up to 1200V with 300A continuous current
- Integrated gate drivers and protection circuits
- -40°C to +125°C operating temperature range
- Customizable modules for specific system requirements
Applications
EV Traction Drives
DC Chargers
Solar Inverters
Industrial Drives
High Frequency Converters
| Part Number | Configuration | Voltage (V) | Current (A) | Package | Actions |
|---|---|---|---|---|---|
| VPIPM-HB-1200V-300A | Half-Bridge | 1200 | 300 | Custom Module | Datasheet |
| VPIPM-HB-1200V-250A | Half-Bridge | 1200 | 250 | Custom Module | Datasheet |
| VPIPM-FB-1200V-300A | Full-Bridge | 1200 | 300 | Custom Module | Datasheet |
| VPIPM-3PH-48V-150A | 3-Phase | 48 | 150 | Integrated Controller | Datasheet |
| VPIPM-3PH-48V-250A | 3-Phase | 48 | 250 | Integrated Controller | Datasheet |
Configurations: Half-Bridge, Full-Bridge, 3-Phase with integrated controller
Solid State Relays (SSR)
Solid-state Relays are bidirectional high current switches designed for 2W Battery operated vehicles.
Key Features
- 100V, 300A Solid-State bi-directional switch
- Integrated Power + microcontroller
- CAN, LIN, RS485 interface + Compact Size, Weight
- Suitable for EV, CV, PV, Telecom & Industrial Applications
- High Thermal performance, impedance, and low TJ ripple
Value Proposition
Patented Thermal Design
Compact & Lightweight
Designed in India
Long Operating Life
| Part Number | Polarity | VCE (V) | IC (A) | VCE(sat) (V) | Package | Actions |
|---|---|---|---|---|---|---|

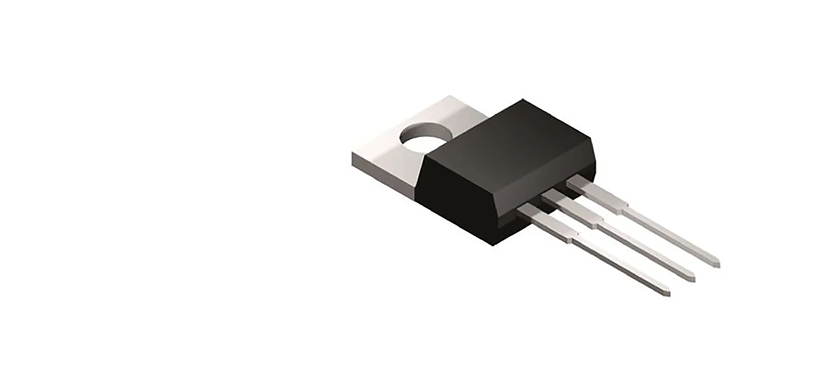

| VPMIFB030N650TU | N-Channel | 650 | 30 | 1.65 | TO-220F | |
| N-Channel | 650 | 80 | 1.8 | TO-247 | Datasheet | |
| VPMIPP100N650TU | N-Channel | 650 | 100 | 1.85 | TO-247 | Datasheet |
| VPMIPP050N1K2TU | N-Channel | 1200 | 50 | 2.0 | TO-247 | Datasheet |
| VPMIPP080N1K2TU | N-Channel | 1200 | 80 | 2.1 | TO-247 | Datasheet |
| VPMIPP150N1K2TU | N-Channel | 1200 | 150 | 1.8 | TO-247-PLUS | Datasheet |
Peak current up to 1200A @ 25°C | Dimensions: 123 × 108.6 × 49.7 mm

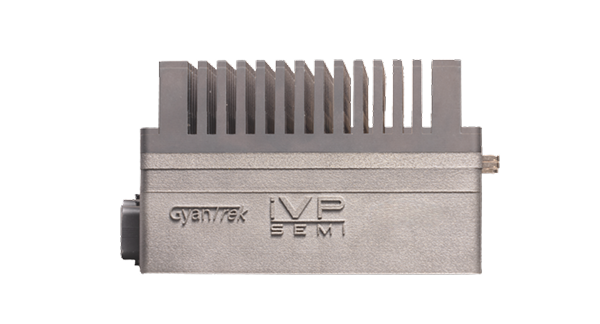

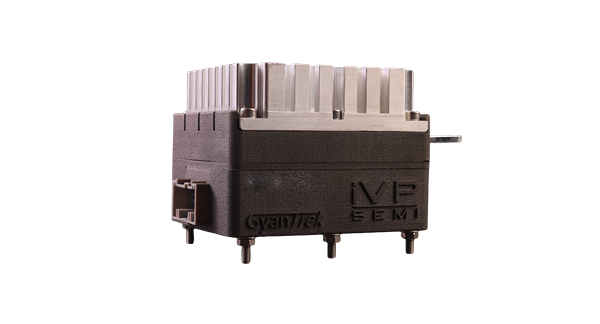

Traction Inverters
EV traction Inverter designed using patented Thermal stack design delivering high output in a compact size.
Key Features
- 5 kW (48V, 150A) – suitable of ACIM, BLDC, PMSM, SyncRec Motors
- CAN interface, Halls Sensors, Back EMF, Encoder feedback(sat)
- High Thermal performance and impedance, low TJ ripple
- Integrated IPM + Controller inside with OC, OV, UV, OT Protections
Value Proposition
Patented Thermal Design
Compact & Lightweight
Designed in India
Long Operating Life
| Part Number | Type | VDS (V) | ID (A) | RDS(on) Typ (mΩ) | Package | Actions |
|---|---|---|---|---|---|---|
| VPLMBB218N030TU | N-Channel | 30 | 218 | 2.1 | TO-220-3L | Datasheet |
Need Help Selecting the
Right Device?
Our field application engineers are ready to assist you with device selection, design-in support,
and customized solutions for your power electronics applications.
